In the relentless flow of global commerce, the humble pallet remains the undisputed workhorse for unit load storage and transportation. The processes of loading (palletizing) and unloading (depalletizing) these pallets are critical junctures in the supply chain, directly impacting efficiency, cost, and safety. To meet the demands of speed, scale, and precision, a diverse range of specialized machinery has been developed. This article provides a comprehensive introduction to the types, functions, and benefits of modern palletizing and depalletizing machines.
Palletizing and depalletizing machinery encompasses all equipment designed to automate or significantly assist the process of stacking products onto pallets (palletizing) or removing them from pallets (depalletizing). This broad category includes everything from simple layer placers to highly sophisticated robotic cells. The core purpose of this machinery is to replace slow, physically demanding, and potentially hazardous manual labor with fast, reliable, and consistent automated systems.
These machines are fundamental in industries with high-volume production lines, such as food and beverage, consumer packaged goods (CPG), pharmaceuticals, chemicals, and building materials.
The technological landscape offers various solutions tailored to different needs based on speed, flexibility, and budget.

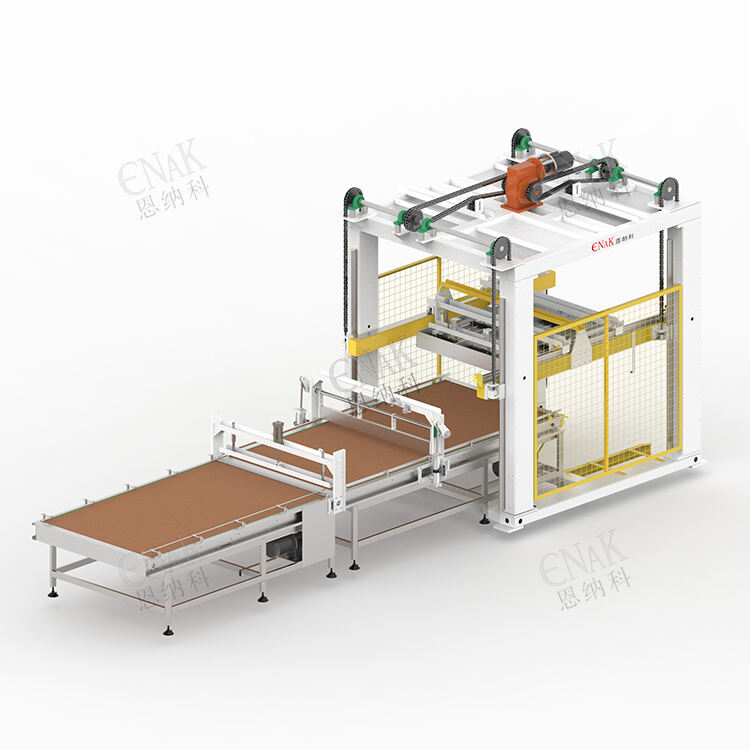

These are workhorses of high-speed, low-mix environments. They are characterized by a large forming area where an entire layer of products (cases, bags, boxes) is assembled simultaneously. A sweep or platen then pushes or lifts the complete layer onto the pallet below.
Advantages: Extremely high throughput (exceeding 100 cases per minute), robust construction, and lower cost-per-case for high-volume, single-SKU lines.
Disadvantages: Lower flexibility; changeover between different products or patterns can be time-consuming. Requires a large footprint.

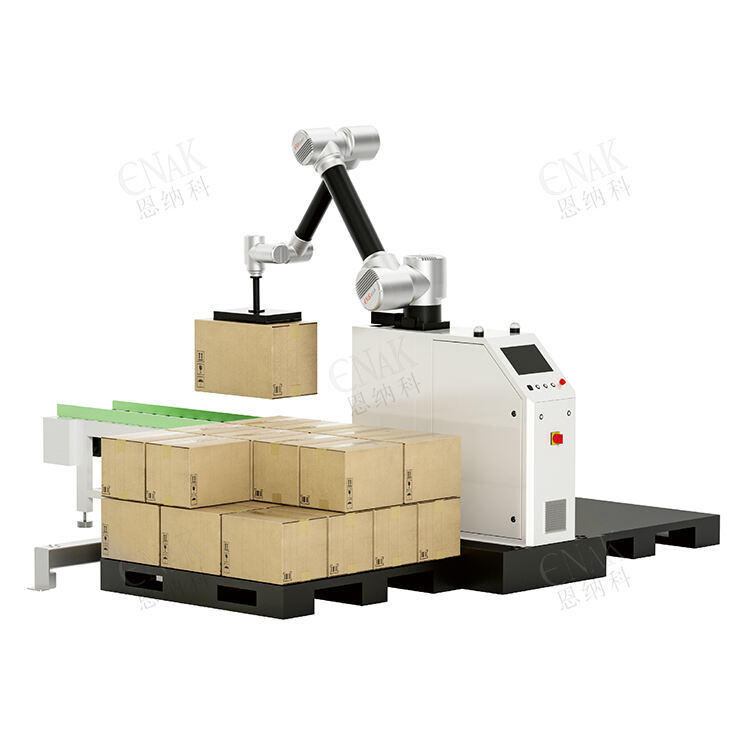

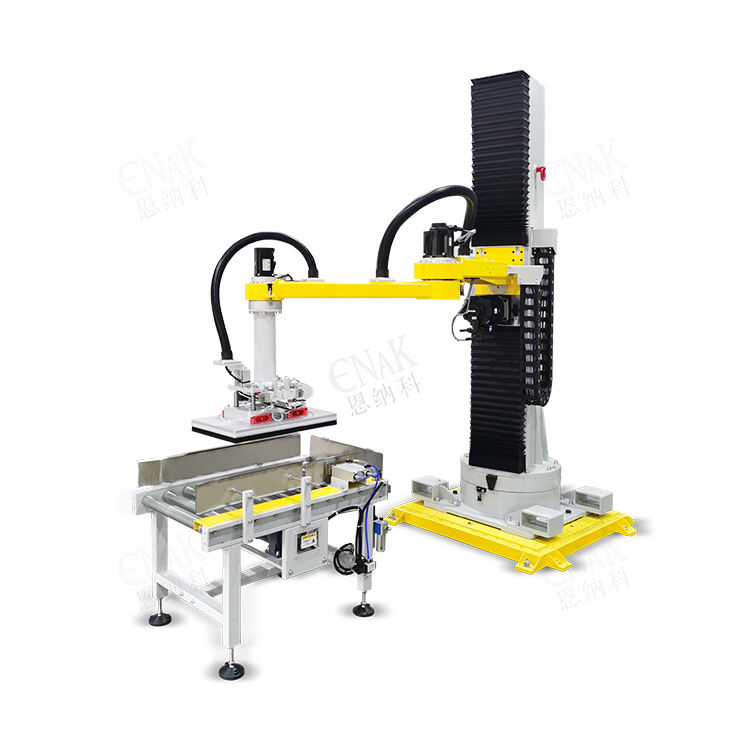

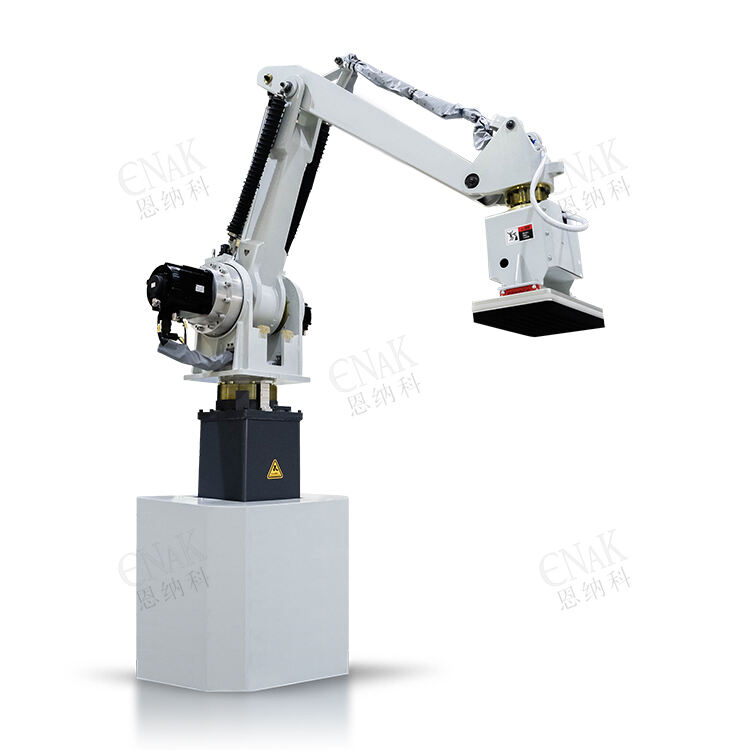

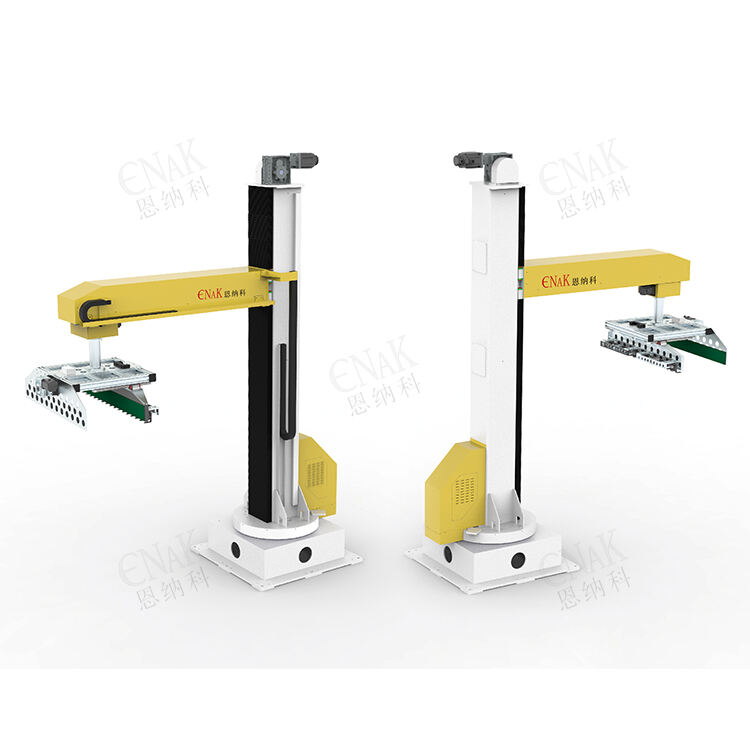

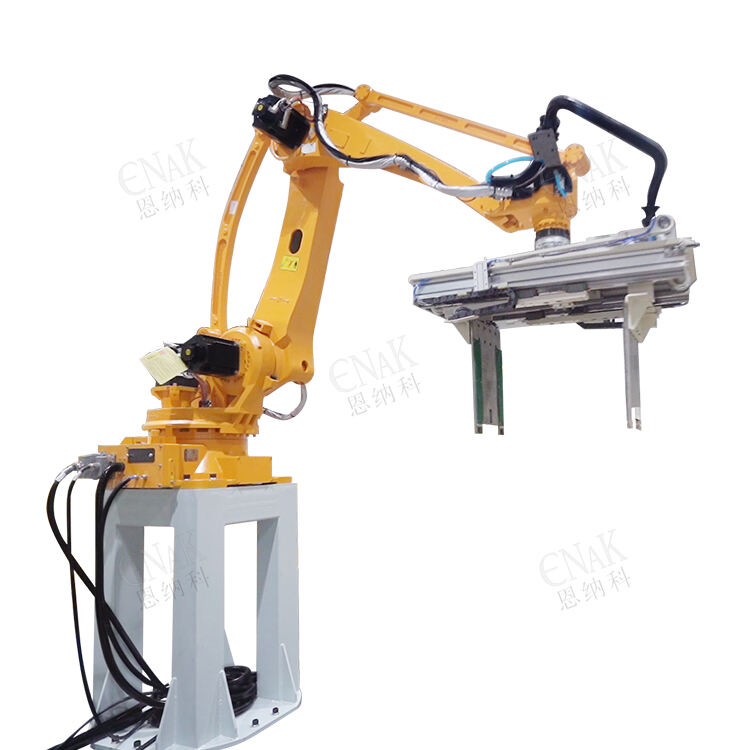

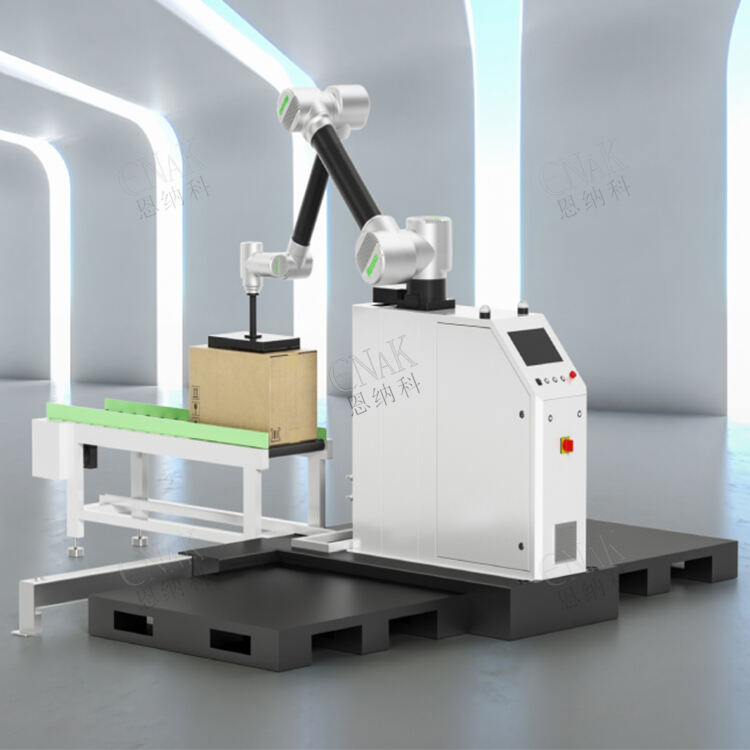

This category utilizes industrial robots (typically articulated or gantry-style) equipped with specialized End-of-Arm Tooling (EOAT) to pick and place individual products or entire layers.
Advantages: Unmatched flexibility. They can handle multiple product types and patterns on the same line with quick changeovers. Their footprint is often smaller than conventional machines. Advanced vision systems allow them to handle randomly oriented products. Ideal for mixed-SKU pallets and high-value applications.
Disadvantages: Generally have a lower maximum throughput than high-speed conventional palletizers, though they are incredibly fast. Higher initial investment.
This classification refers to the machine's infeed height.
Low-Level Palletizers: Infeed is near floor level. The machine lifts the product to the necessary height to place it on the pallet. These are easier for operators to access and maintain but may have slightly slower cycle times.
High-Level Palletizers: Infeed is high, often from an elevated conveyor. The pallet is positioned at a lower level, and the machine places the product downwards. This is a more gravity-friendly design, often allowing for higher speeds and a smaller footprint.
These machines operate on three linear axes (X, Y, Z) and are built over the workspace like a bridge. They are incredibly rigid and capable of handling extremely heavy loads (e.g., building materials, large bags of fertilizer) that might challenge an articulated robot.
Advantages: Excellent for heavy loads, high precision, and can cover a very large work envelope.
Disadvantages: Can be more expensive and less flexible than articulated robots for complex paths.

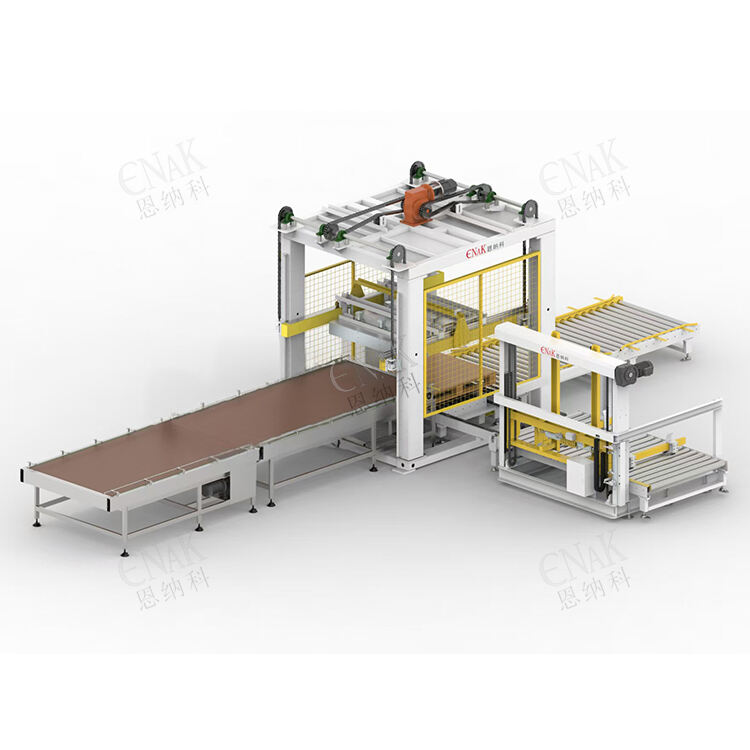

While not palletizers themselves, these are crucial auxiliary machines. Dispensers automatically supply empty pallets to the system, while de-layers (a form of simple depalletizer) break down incoming layers of products for feeding onto production lines.
While designs vary, most automated systems share common components:
Infeed Conveyor: Brings products to the machine.
Product Squaring/Alignment Area: Ensures products are oriented correctly before being picked or layered.
Pattern Formation System: In conventional machines, this is a large area with moving walls. In robots, this is managed by the robot's programming.
Lifting/Lowering Mechanism: Adjusts the height of the pallet or the placing head to build the load layer by layer.
End-of-Arm Tooling (EOAT) (for robots): The specialized "hand," which can be vacuum-based (for boxes, bags), mechanical grippers, or fork-style for lifting layers.
Pallet Handling System: Moves empty pallets into position and full pallets out to a stretch wrap station or pickup area.
Control System (PLC/HMI): The programmable logic controller and human-machine interface form the brain of the machine, allowing operators to select patterns, monitor performance, and troubleshoot issues.
The basic operation involves receiving a product, forming it into a pre-programmed pattern, and transferring it onto the pallet. The pallet is then lowered, and the process repeats until the load is complete.
Investing in this machinery delivers transformative benefits:
Dramatically Increased Productivity: Machines operate 24/7 at constant, high speeds, far exceeding human capabilities and significantly boosting throughput.
Enhanced Workplace Safety: Automating the repetitive and heavy lifting of palletizing drastically reduces ergonomic injuries, strains, and accidents, creating a safer work environment.
Superior Load Consistency and Stability: Machines place every product in an identical, pre-engineered pattern. This creates incredibly uniform and stable pallets that minimize product damage during transit and maximize space utilization in trucks and warehouses.
Significant Labor Savings: Automation reduces dependency on manual labor for one of the most physically taxing jobs in a facility, allowing staff to be redeployed to higher-value tasks.
Operational Flexibility (Especially with Robots): Quick changeovers between products and patterns allow for efficient handling of short production runs and a high mix of SKUs.
The application of this machinery is vast:
Food & Beverage: Handling cases of bottles, cans, bags of snacks, frozen goods, and dairy products.
Beverage: High-speed palletizing of cans, glass, and PET bottles into stable patterns for distribution.
Consumer Goods: Packaged goods, paper products, and appliances.
Pharmaceuticals: Handling delicate and high-value cases of medicines and medical devices, often in clean environments.
Building Materials & Chemicals: Palletizing heavy bags of cement, fertilizer, chemicals, and other bulk materials.
From the raw power of a conventional layer palletizer to the elegant flexibility of a robotic cell, palletizing and depalletizing machinery forms the backbone of modern material handling. It is a critical investment that drives efficiency, ensures safety, and builds a more resilient, scalable, and competitive operation. As logistics evolve towards greater connectivity and intelligence (Industry 4.0), this machinery is increasingly becoming integrated, data-driven, and smarter, further solidifying its role as an indispensable engine of global trade.
