Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine

Product Overview:

The Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine is the latest dual-side labeling solution developed by Tianjin ENAK. It is specially designed for fruit juice bottles, edible oil bottles, and other square or oval containers. This equipment combines high speed with superior accuracy and integrates two of ENAK’s proprietary technologies:

Dual-roller label feeding technology: Before application, labels pass through an active pressure roller to eliminate wrinkles, ensuring smooth attachment and the efficient use of the very last label.

Two-stage spring-type clutch with belt brake: Provides constant tension at high speed, guaranteeing stable label feeding without stretching or tearing.

Performance Features:

The Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine adopts a Siemens PLC closed-loop control system and a Yaskawa 750W ultra-low inertia servo motor. Combined with an advanced human-machine interface, it achieves unmatched precision. The label feeding speed accuracy reaches 0.01 m/min, far exceeding the industry’s typical 1 m/min level. The output speed can be digitally adjusted from 0.5–40 m/min, making it adaptable to various production line speeds and truly realizing high-speed and high-precision labeling.

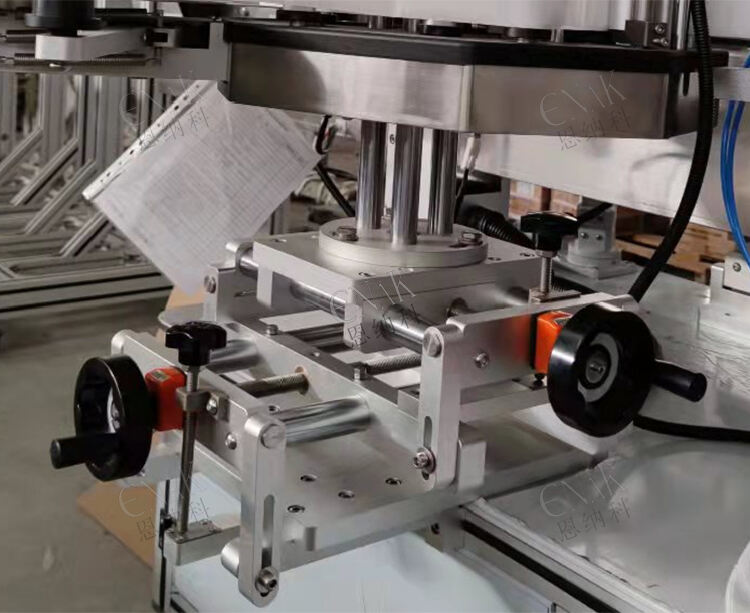

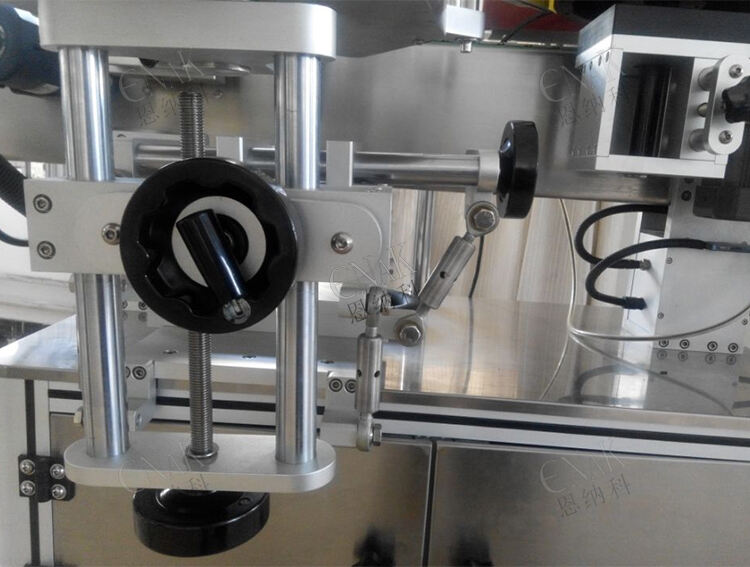

Eight-dimensional adjustable labeling head

The Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine is equipped with a labeling head that can be adjusted across eight dimensions. This enables quick adaptation to different bottle types and label angles, making it particularly effective for irregular bottles and challenging transparent labels. Operators can achieve precise results with minimal manual effort, greatly improving production flexibility.

High-elastic scraper and sponge rollers

During the labeling process, labels are pressed by a high-elastic scraper and sponge rollers to evenly expel air. This ensures bubble-free and wrinkle-free results. Even on smooth or transparent surfaces such as fruit juice bottles and oil bottles, the Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine maintains perfect flatness, delivering a premium appearance for branded products

Enhanced rigidity mechanical structure

The machine’s frame is designed with reinforced rigidity for improved stability. The overall structure is simple, elegant, and durable. Even under high-speed operation, the Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine minimizes vibration, reduces maintenance frequency, and extends service life. Its long-term reliability makes it ideal for large-scale continuous production.

Smart and user-friendly operation

With a colorful human-machine interface (HMI), operators can easily configure and store parameters. Multiple labeling parameter sets can be saved and recalled with one click, streamlining the changeover process for different products. The bilingual interface (Chinese/English) shortens the learning curve and allows operators to master the system quickly, reducing labor costs and improving efficiency.

In short, the Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine combines accuracy, reliability, flexibility, and ease of use, offering companies a powerful tool to enhance productivity and quality.

The Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine is designed with a focus on precision, stability, and adaptability throughout the production process:

Bottle Conveying: A frequency-controlled chain conveyor ensures bottles move smoothly without tipping or collision. The conveyor height and width of the Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine can be customized to integrate with existing production lines.

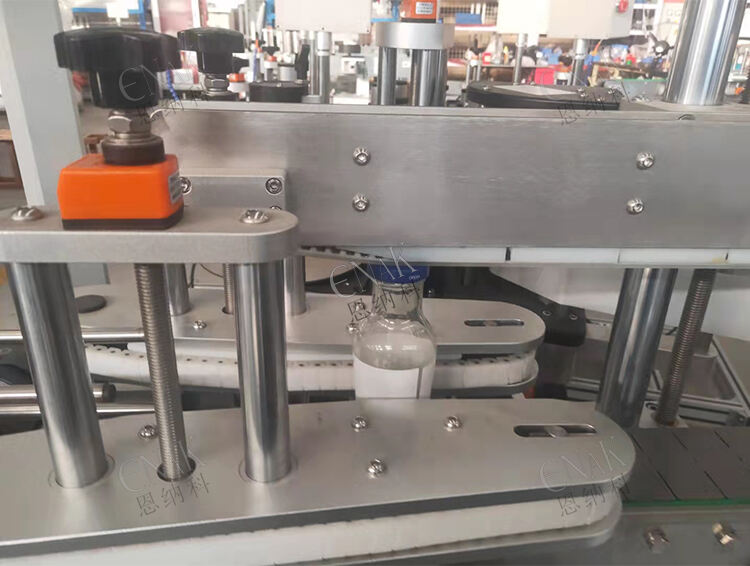

Bottle Separation and Positioning: Stainless steel guide rails and synchronized separation mechanisms keep bottles in the correct position, ensuring consistent double-sided labeling.

Label Feeding and Application: The dual-roller system combined with a constant tension clutch allows the Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine to feed labels stably at high speed with precise placement.

Scraping and Pressing: The high-elastic scraper and sponge wheels press labels firmly, completely eliminating bubbles and ensuring a neat finish, even on transparent juice or oil bottles.

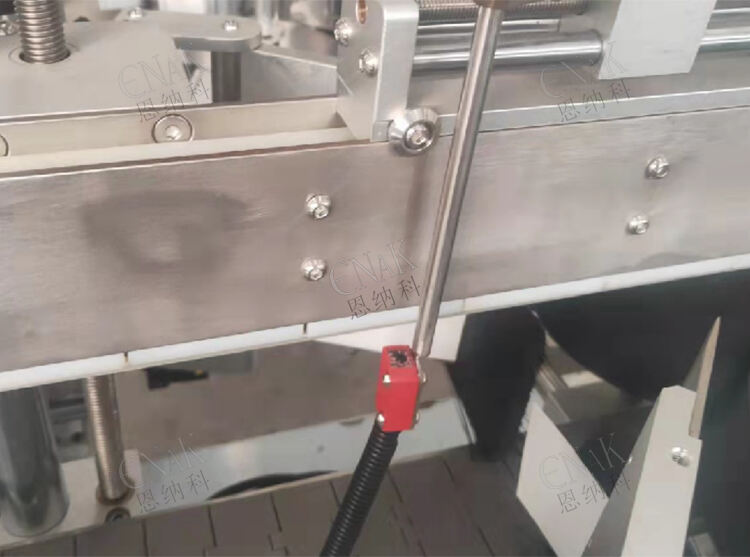

Detection and Control: German Leuze sensors monitor bottles and labels in real time. The Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine automatically identifies missing bottles or labels to prevent errors and reduce waste.

Thanks to these processes, the Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine fully meets the demanding labeling standards of beverage, food, and edible oil industries.

Q1: Can the Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine handle transparent labels?
A1: Yes. With high-sensitivity sensors, it detects and applies transparent labels with accuracy.

Q2: Does bottle changeover require complicated adjustments?
A2: No. The Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine can store multiple parameter sets. Operators can switch between them instantly.

Q3: Is it suitable for irregular or tapered bottles?
A3: Absolutely. The eight-dimensional adjustable labeling head allows the Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine to adapt easily with simple manual adjustments, no extra parts required.

Q4: Do operators need specialized training?
A4: Not at all. With a bilingual and intuitive interface, the system is easy to learn and operate.

If you are looking for a fast, precise, and highly adaptable solution,
the Fruit Juice Oil Bottle Automatic Double Self-adhesive labeling machine is your ideal choice.

Contact Tianjin ENAK Automation Equipment Co., Ltd. today and leave your inquiry information.
Our professional team will reach out promptly with detailed product specifications and customized quotations.
