Description
Product Overview:

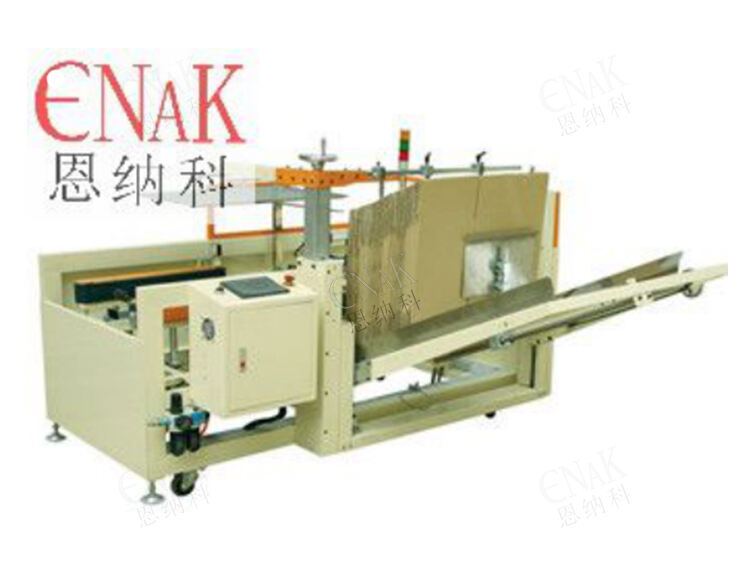

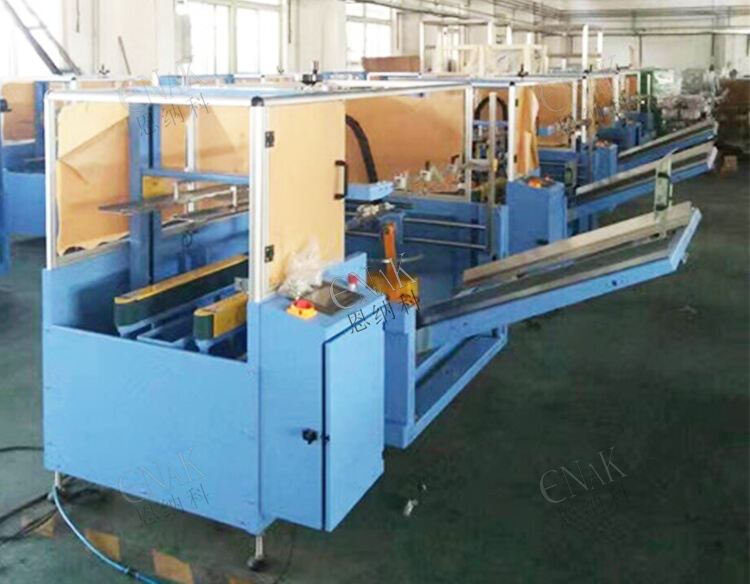

The Automatic Case Opening Machine Carton Packaging Machine (Carton Forming Machine) developed by TIANJIN ENAK MACHINERY CO.,LTD is a core equipment for automatic carton forming and bottom sealing. It is widely used in packaging lines of food, electronics, daily chemicals, pharmaceutical industries. The Automatic Case Opening Machine Carton Packaging Machine enables full-process automatic handling of carton suction, forming and bottom sealing without manual operation, replacing traditional manual carton opening. It solves problems like low efficiency, poor forming accuracy and unstable bottom sealing in manual work, improving packaging standardization and meeting carton pre-processing needs in mass production.
Product Performance:
The Automatic Case Opening Machine Carton Packaging Machine has a convenient adjustment structure for different-sized cartons. Operators can adjust it via a handle (no complex tools needed) — switching between small cartons (200×100×100mm) and large cartons (450×500×350mm) takes only 3-5 minutes. It also adopts a standardized design with sufficient general-spec core parts in stock, avoiding downtime due to part shortages and ensuring production continuity.
Technical Parameters：
Parameter Category |
Specific Specifications |
Case Opening Speed |
10-15 cases per minute |
Tape Size |
48mm, 75mm |
Applicable Carton Range |
Length 200-450mm, Width 100-500mm, Height 100-350mm |
Power Supply |
Single-phase; 110/220V; 50Hz (customizable on request) |
Table Height |
650-850mm |
Machine Size |
Length 2000 × Width 1900 × Height 1200mm |
Applicable Air Source |
250 L/min |
Machine Weight |
350Kg |
Product Advantages
Environmental Protection, Energy Saving and Low Power Consumption:
The core power system of the Automatic Case Opening Machine Carton Packaging Machine uses a 0.55kW high-efficiency motor, saving 54% electricity per hour compared to traditional 1.2kW equipment (about 1,500 yuan annual electricity cost savings). Its bottom sealing part adopts precise tape cutting technology (photoelectric induction control), saving 12-15m tape per 1,000 cases, reducing consumable costs and environmental pressure.
Automatic Fault Detection and Alarm System:
The Automatic Case Opening Machine Carton Packaging Machine is equipped with multi-dimensional sensors to monitor suction pressure, tape remaining, forming position and motor speed. When faults occur (e.g., insufficient tape, carton jamming), it triggers acousto-optic alarm and displays fault codes (e.g., "E01: Replace tape"), shortening troubleshooting time to within 3 minutes and reducing downtime losses by over 30%.
Durable Transmission Structure with Long Service Life:
The Automatic Case Opening Machine Carton Packaging Machine’s transmission system uses imported galvanized alloy chains (2x rust resistance) and quenched 45# steel gears (HB220-250 hardness). It also has an automatic lubrication device — the transmission structure has a trouble-free service life of over 7 years (vs. 3-4 years for ordinary structures), cutting maintenance costs.
High-Strength Frame with Good Anti-Vibration Performance:
The Automatic Case Opening Machine Carton Packaging Machine’s frame is welded with 8-12mm Q235B steel plates (triangular reinforcing ribs, 800Kg load capacity) and undergoes aging treatment. 4 sets of nitrile rubber shock-absorbing pads (0.85 shock absorption coefficient) reduce vibration, keeping amplitude within 0.5mm for stable forming and sealing.
Product [Application Scenarios]
Food Industry Assembly Lines:
The Automatic Case Opening Machine Carton Packaging Machine is suitable for pre-processing cartons for biscuits, pastries and frozen foods. It connects with automatic cartoning machines to realize "opening-cartoning-sealing" automation, improving efficiency by 3x and avoiding hygiene risks from manual contact.
Electronics Industry:
The Automatic Case Opening Machine Carton Packaging Machine adapts to electronic component and small appliance cartons (e.g., 200×150×120mm, 400×300×250mm). Fast specification switching meets multi-category packaging needs, ensuring carton accuracy and reducing product damage.
Daily Chemical Industry:
The Automatic Case Opening Machine Carton Packaging Machine runs continuously for 12 hours (12-15 cases/min) to meet bulk packaging needs of shampoo, laundry detergent. Its strong tape sealing prevents leakage during transportation, reducing logistics losses.
Frequently Asked Questions
Q: Can the Automatic Case Opening Machine Carton Packaging Machine adapt to non-standard cartons?
A: It defaults to standard cartons (200-450×100-500×100-350mm). Customized services are available for non-standard sizes (e.g., <180mm length, >550mm width) by adjusting suction and forming parts — contact our technical team for details.
Q: Does the Automatic Case Opening Machine Carton Packaging Machine need special installation conditions?
A: No. It only requires single-phase 110/220V power, 250 L/min air source and 2.5×2×1.5m space. We arrange on-site installation (1-2 days) and optimize placement to connect with existing lines, without affecting production.
Q: What are the wearing parts and their replacement cycles?
A: Main wearing parts: tape cutters (6-8 months), silicone suction cups (3-4 months), and lubricating oil (monthly refill). We provide part lists, tutorials and preferential purchase plans for quick replacement.
If you are interested in the Automatic Case Opening Machine Carton Packaging Machine of TIANJIN ENAK MACHINERY CO.,LTD, please leave your company name, contact information and needs (e.g., carton specs, daily output). Our consultant will contact you within 24 hours to offer quotes, on-site demos and customized solutions, helping you optimize your packaging line.
